Civil Defense Warning STation I
In July of 1951, the Western Allies agreed that Germany had to build a civil air defense system.
The Department of the Interior set up the committee for air defense in November of the same year, which in 1953 merged into the Federal Office for
Air Defense.
In 1954, the German constitution was changed in order to give the government the authority to build a civil defense.
Integral parts of the civil air defense since 1956 were the ten so-called "Warnämter" (Warning Offices).
These were tasked with
- gathering and evaluating critical data concerning imminent dangers
- issuing warnings during a state of defense by sirens and over the radio
- issuing the all-clear-signal with sirens and over the radio
- maintaining a constant flow of information to critical administration and industry operations
The warning offices were only tentative during the 50s and early 60s and moslty located in the communication offices of bigger cities, until
suitable areas had been found to construct special locations with an underground shelter.
These shelters were the same for every warning office:
About 35 meters long, 29 meters wide and 16 meters high and a maximum height over ground of 3 meters.
The bunker was supposed to protect against a direct impact of explosive bombs of up to 1000kg, close hits of even bigger bombs, incendiary bombs and
firestorms, against nucelar, chemical and biological warfare agents and against the effects of a nuclear detonation in the air up to a pressure of 9 atmospheres (10.000 hPa).
For these bunkers it meant that the bottom floor is 2 meters thick and the walls as well as the roof are 3 meters strong.
Each of these bunkers takes up a space of 16.300 cubic meters. Of these, 11.300 cubic meters are reincorced concrete, only 5.000 cubic meters make
up the actual rooms.
Every one of the ten warning areas in Western Germany got their own warning station - including the underground shelter - that was under direct
control of the Office for Civil Defense.

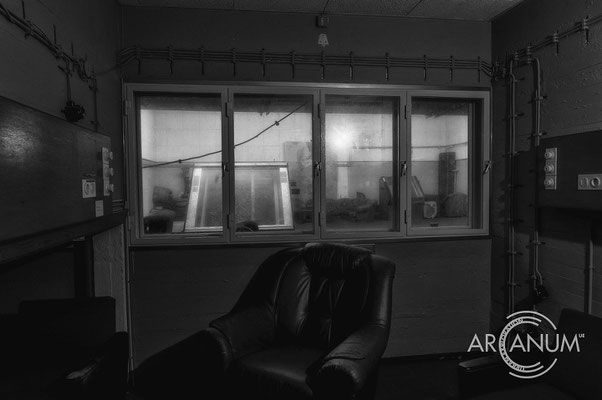

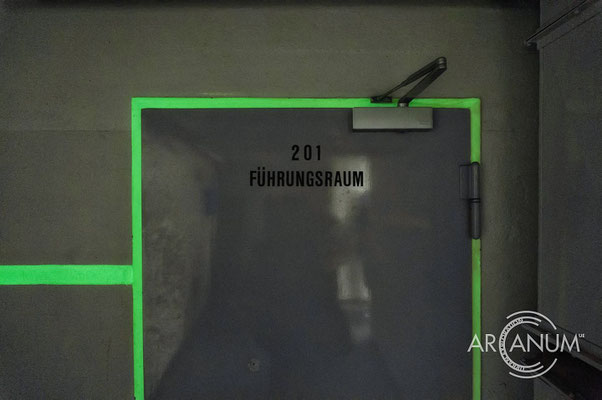

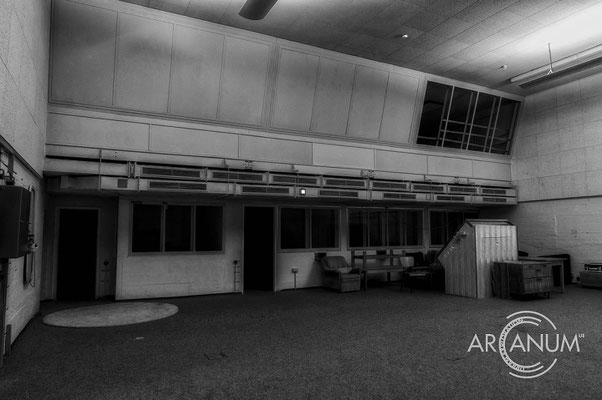

The "nerve center" of each warning station was the huge two-floor high Operations Room in which numerous communication seats and ABC-Situation as well as general warning charts were located.
Here, all the relevant data was collected and used to make decisions concerning public warnings and information.
Here, all the communication took place in the direction of the affiliate state or district governments but also to all the data suppliers.
Among these data suppliers were "in-house" services such as the liaison to the NATO's situation rooms and the warning service's measuring points as well as organizations like the German Meteorological Service and the German Flight Control Office.

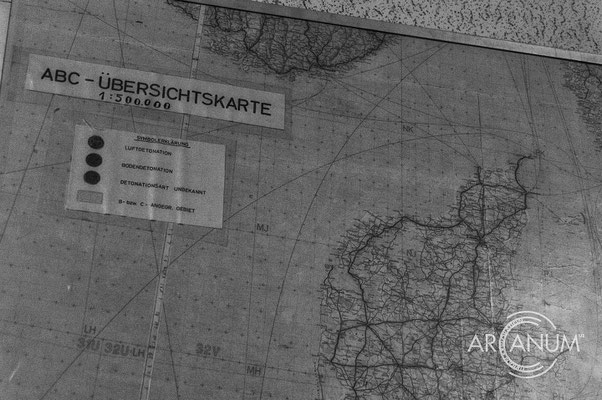

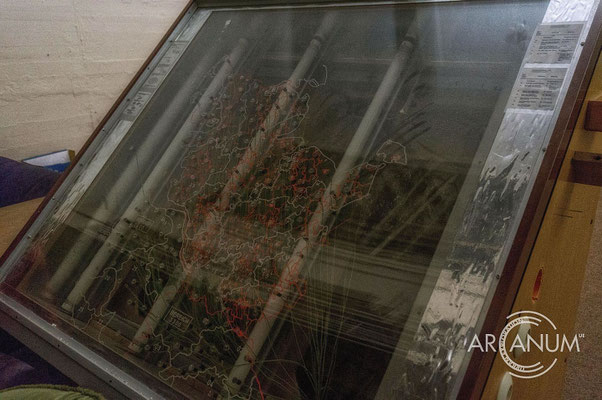

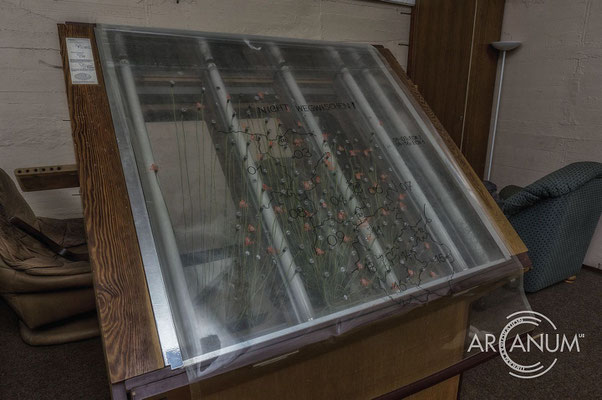

In the situation room, the ABC- and air situation was constantly tracked on huge charts. These were first made of paper, later from glass and had a size of about 5x5 meters.
The draftsmen had to draw from the rear side of the map to guarantee an unimpeded view for the personnel.
The "nerve center" of each warning station was the huge two-floor high Operations Room in which numerous communication seats and ABC-Situation as well as general warning charts were located.
Here, all the relevant data was collected and used to make decisions concerning public warnings and information.
Here, all the communication took place in the direction of the affiliate state or district governments but also to all the data suppliers.
Among these data suppliers were "in-house" services such as the liaison to the NATO's situation rooms and the warning service's measuring points as well as organizations like the German Meteorological Service and the German Flight Control Office.
In the situation room, the ABC- and air situation was constantly tracked on huge charts. These were first made of paper, later from glass and had a size of about 5x5 meters.
The draftsmen had to draw from the rear side of the map to guarantee an unimpeded view for the personnel.
On the basis of the collected data, the director of the warning station made decisions concerning the alert status for the population in his warning
area and also about the contents and about the nature of the alarm.

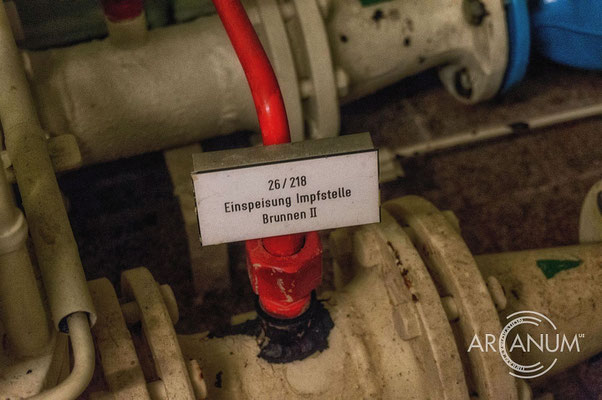

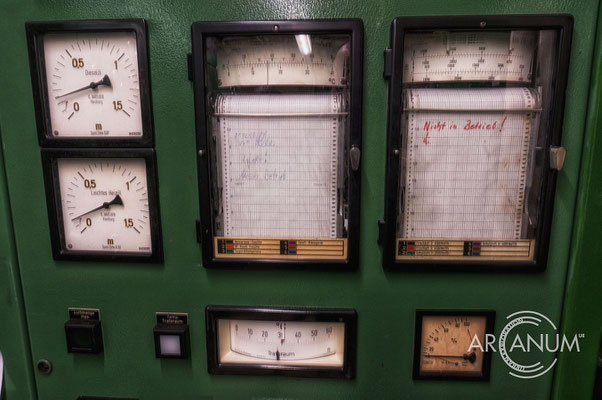

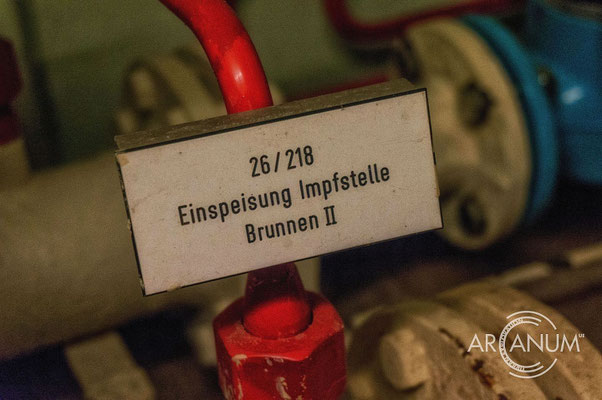

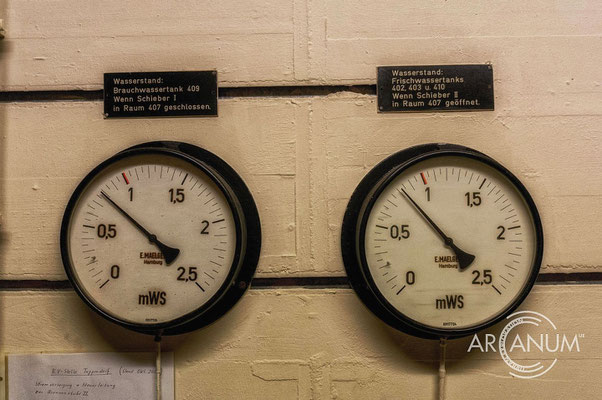

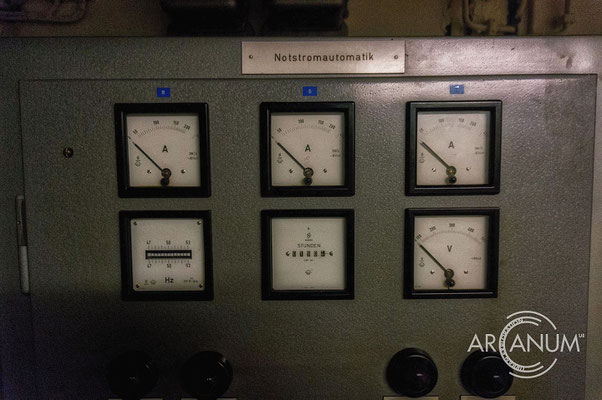

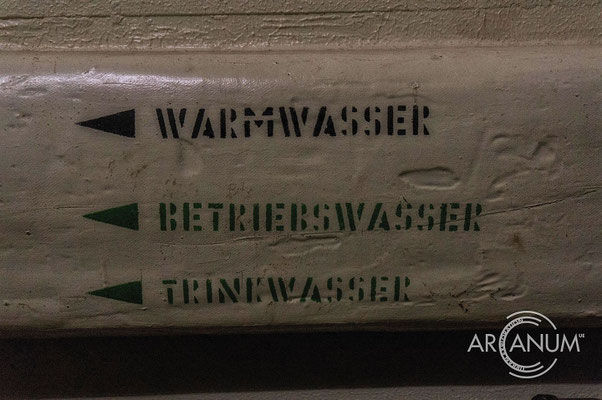

The shelter was designed to be able to operate independently for at least 30 days. In order to achieve this, it was constructed with its own independent water supply from two deep wells, two emergency generators with a power output of 120 kVA and 30 kVA, climate control and ventilation system with switchable sand and room filters. There was a kitchen with supply room and cooling room for perparing the meals of the personnel and a sick bay for injured or sick personnel.

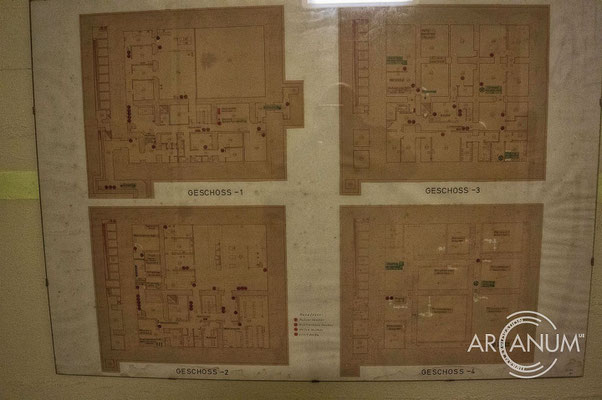

Here's the list of rooms to put into the warning station shelter according to the 1962 construction program for the air defense service:
Floor -1:
Floor -2:
Floor -3:
Floor -4:
The shelter was designed to be able to operate independently for at least 30 days. In order to achieve this, it was constructed with its own independent water supply from two deep wells, two emergency generators with a power output of 120 kVA and 30 kVA, climate control and ventilation system with switchable sand and room filters. There was a kitchen with supply room and cooling room for perparing the meals of the personnel and a sick bay for injured or sick personnel.
Here's the list of rooms to put into the warning station shelter according to the 1962 construction program for the air defense service:
- the warning service including the necessary intelligence facilities
- the utilities and engineering (climate, generators etc.) and the related supplies
- accommodation for a staff of 196 persons (60 men, 136 women), of which are: 16 full-time employees (12 men, 4 women) and 3 shifts, each with a staff of 60 (16 men, 44 women with seperate sleeping and recreational rooms). In case of defense, the beds for the shift personnel have to be used three times a day (eight-hour shifts). Reserve beds have do be provided to account for changes in the ratio of men and women in the personnel
- the kitchen for shift operation and supply rooms
- a sick bay including decontamination rooms

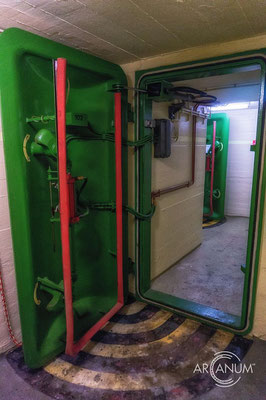

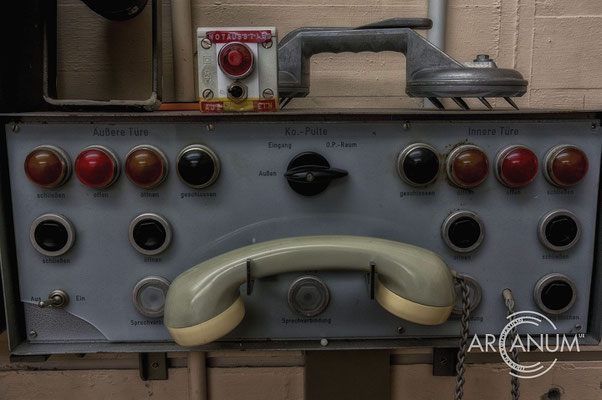

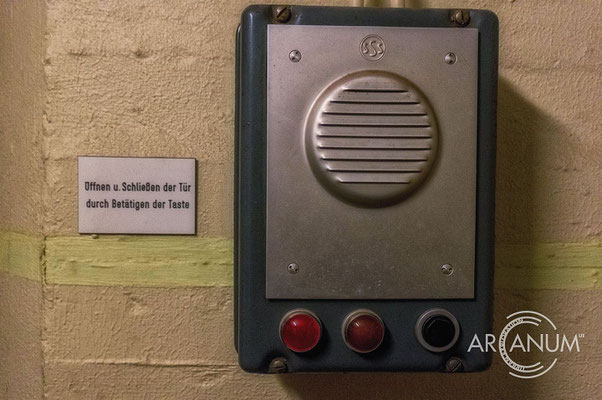

- double door systems

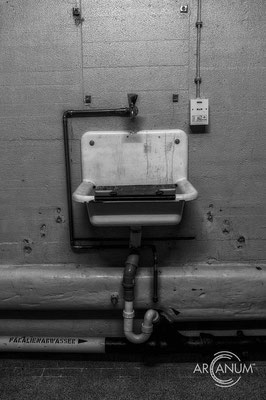

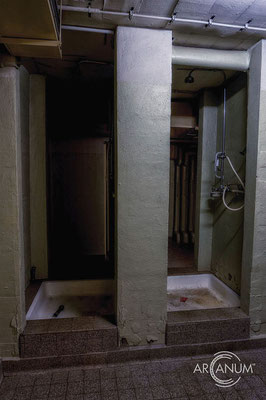

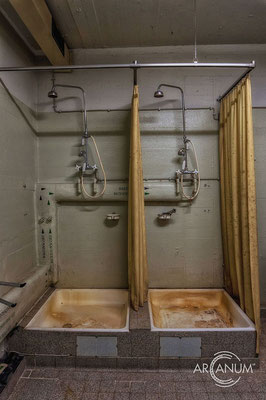

- sanitary installations, hallways, secondary rooms

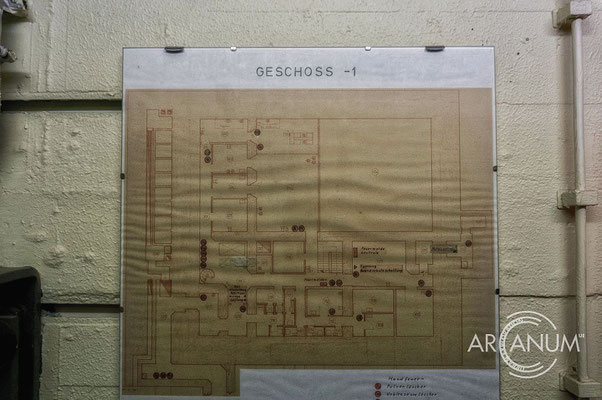

Floor -1:

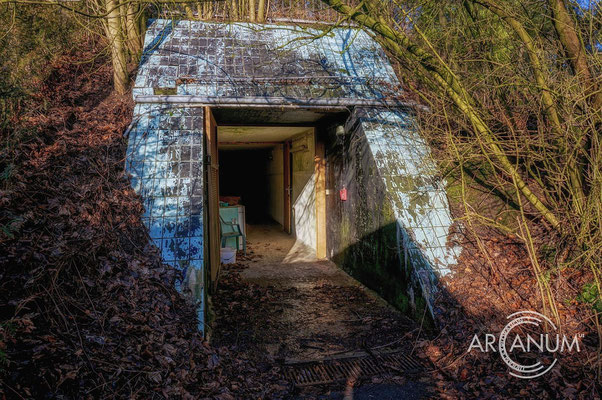

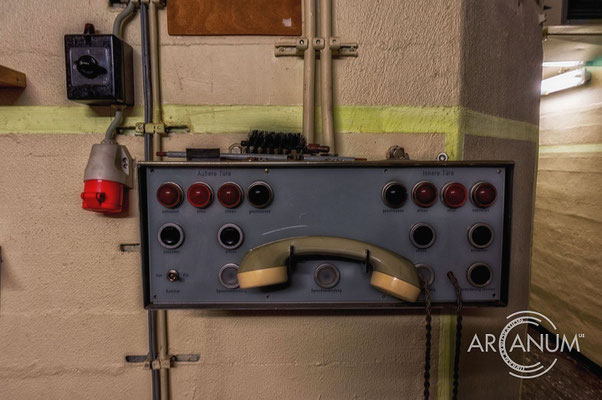

- Main entrance through the double door system
- Emergency Exit

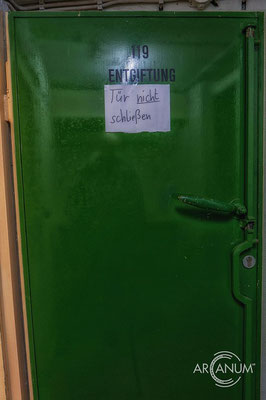

- Decontamination rooms
- ABC-Intelligence and Analytics Room
- Operations Room (also on -2)
- Accomodation for the warming station director and the operations manager

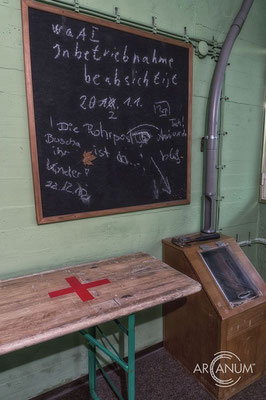

- one doctor's office and two patients' rooms
- Telefax and radio room
Floor -2:
- Operations Room (also on -1)
- Telephony switchboard
- Intelligence gathering and transferring room
- Room for the director of the Director of Communications
- Teleprinter room
- Room for the switchboard engineering

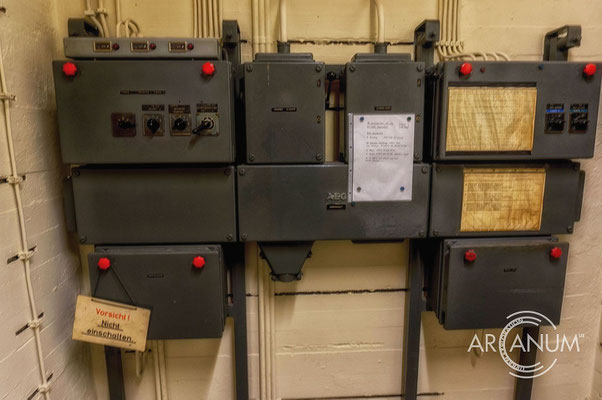

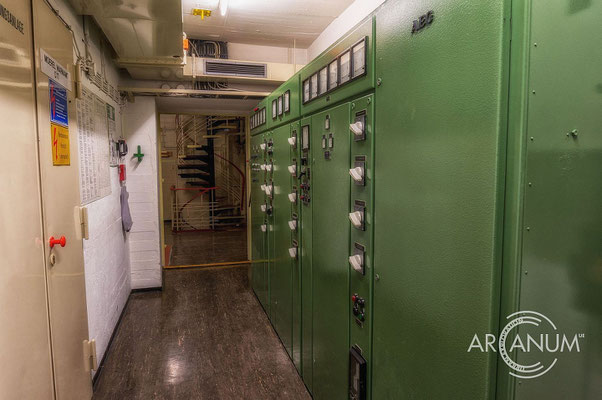

- Transformer station and infeed (10 kV)

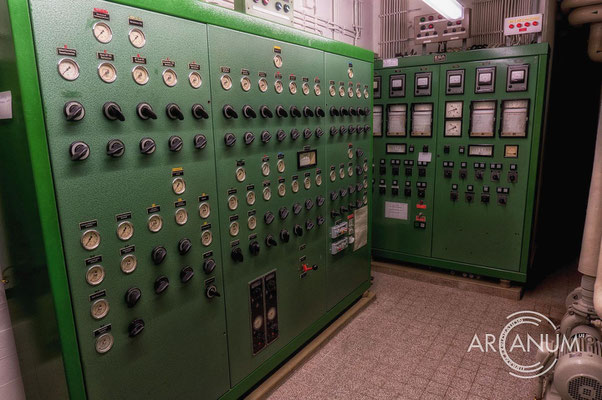

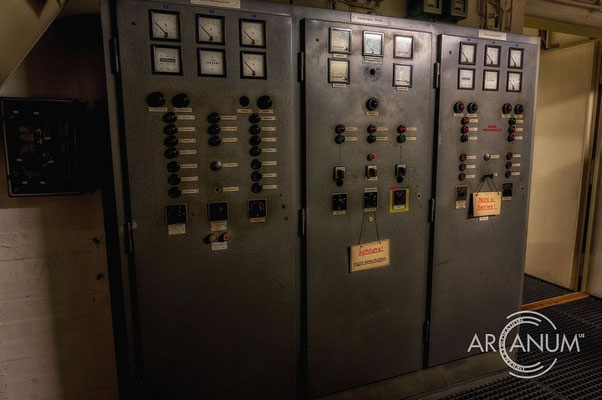

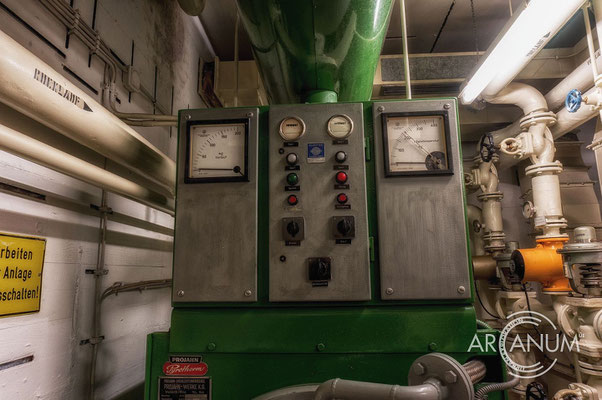

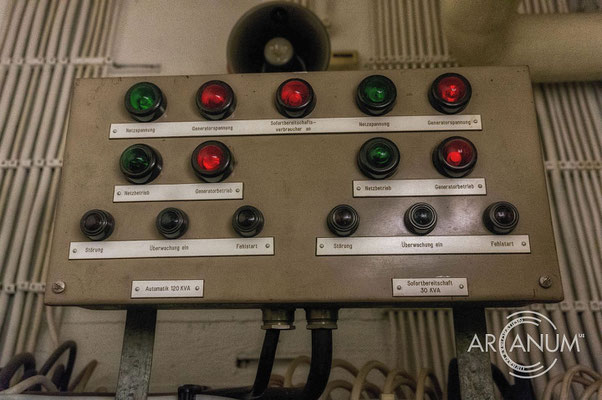

- Generator room with two Diesel generators (130 kVA/ 30 kVA)

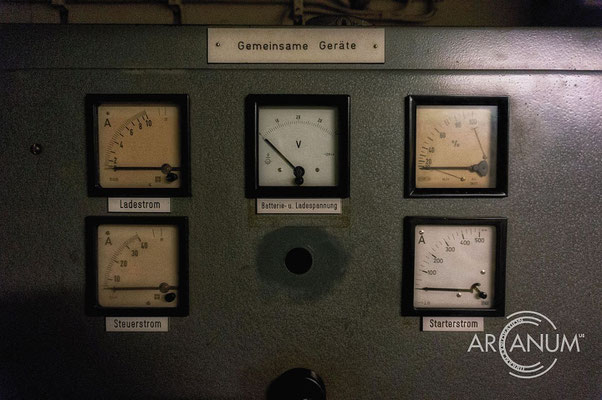

- Battery room

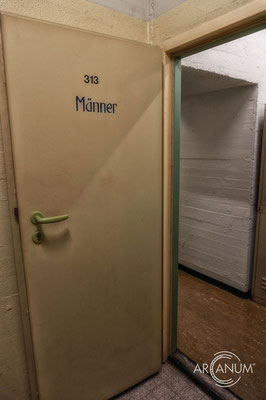

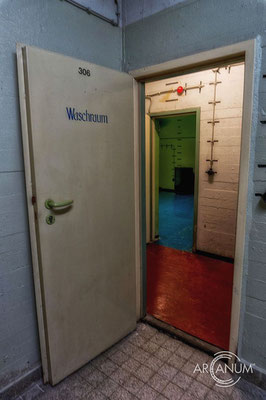

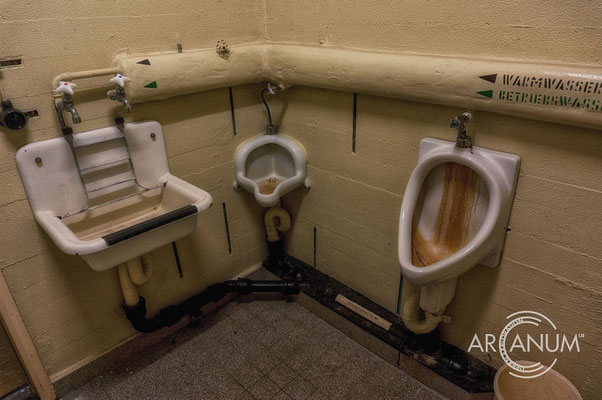

- Lavatories for the personnel, women and men seperate

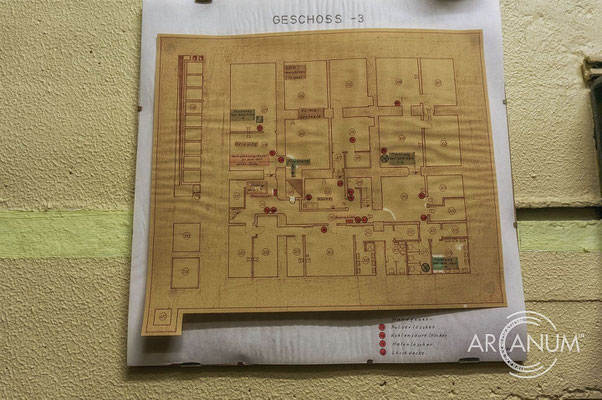

Floor -3:

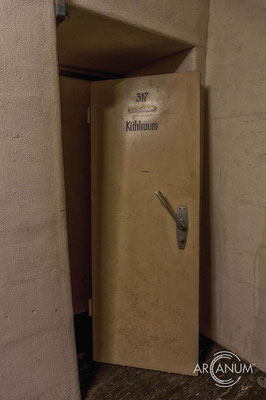

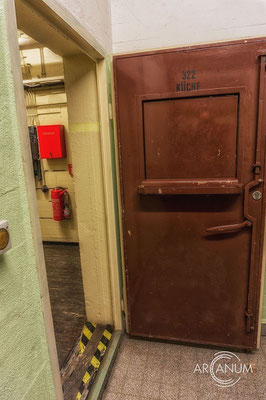

- Kitchen and supply rooms, cooling chamber

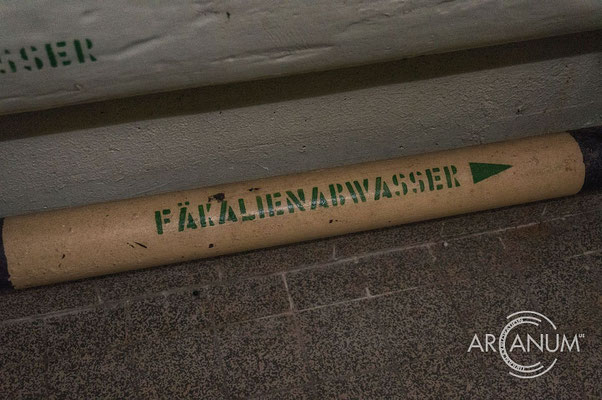

- Sewage plant (also on -4)

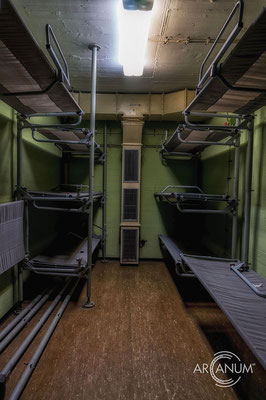

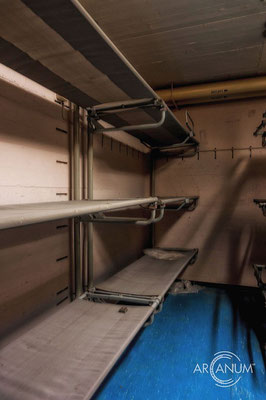

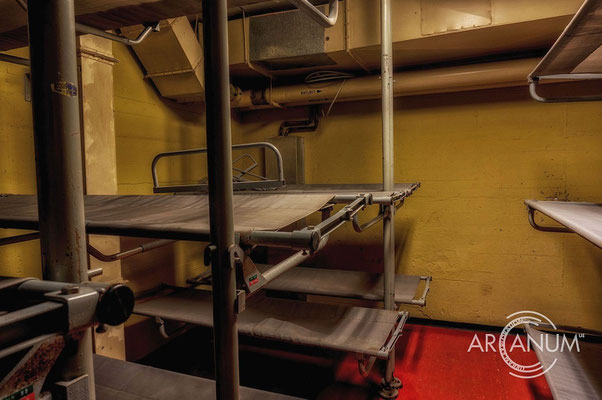

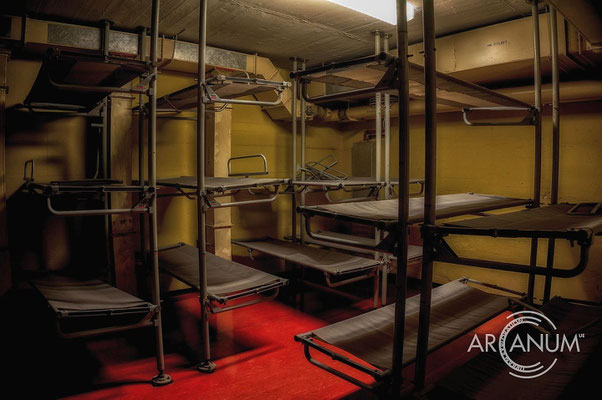

- Sleeping rooms and social rooms for the personnel

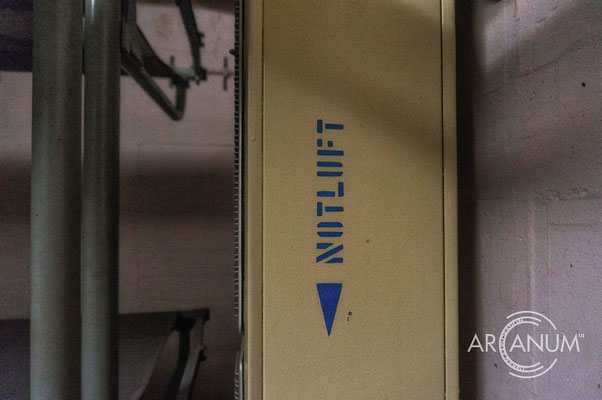

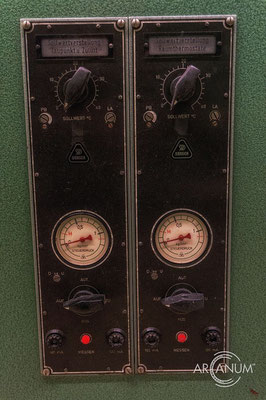

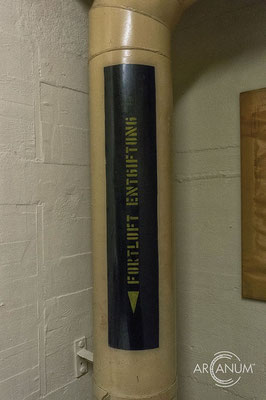

- Room filter and ventilation

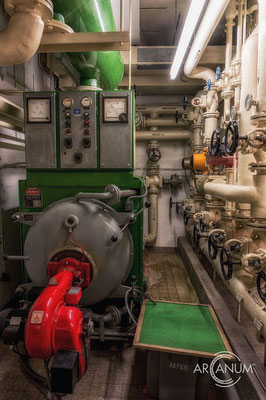

- Heating
- Lavatories for the personnel, women and men seperate
Floor -4:

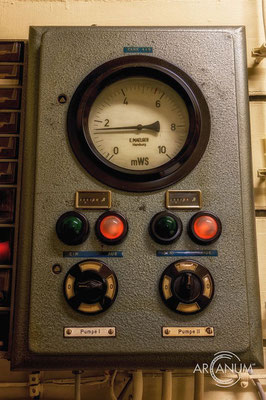

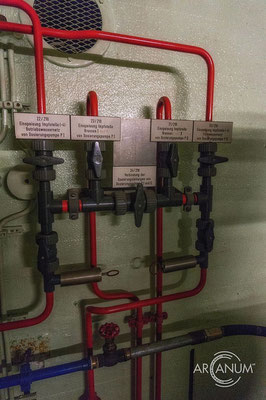

- Water pressure booster
- Ventilation fans
- Intake for the sand filters

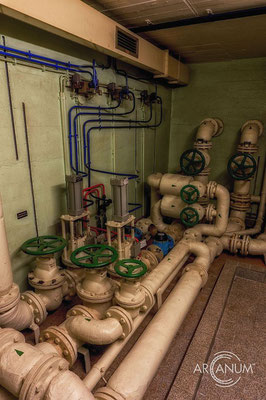

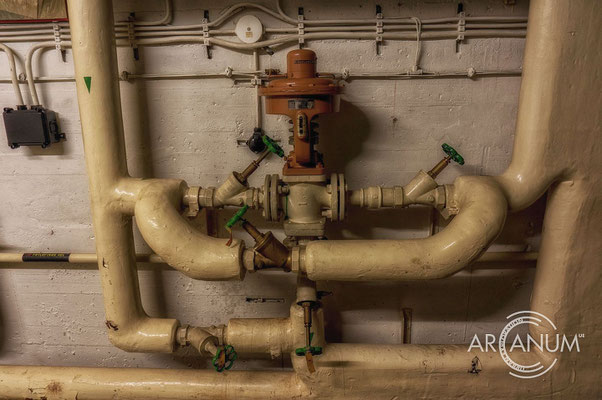

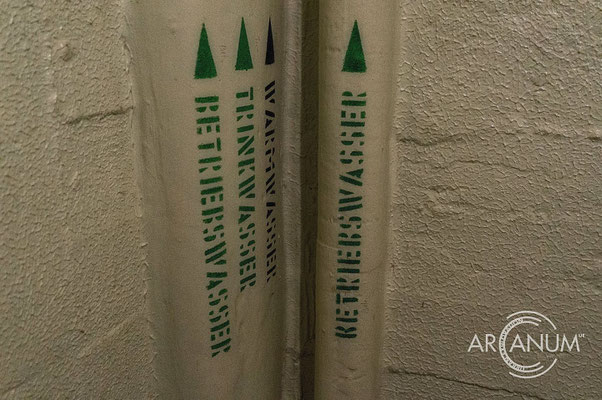

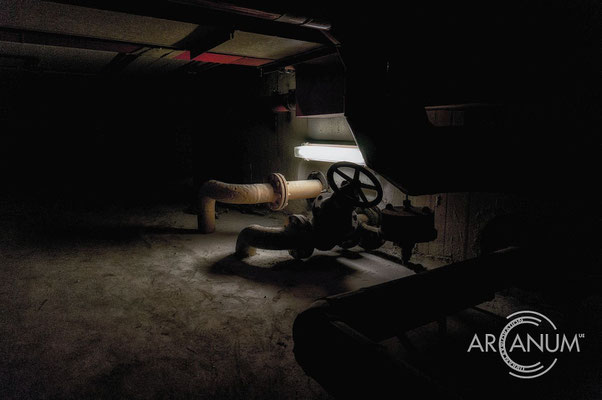

- Supply and disposal plants and piping
- Sewage plant (also on -3)

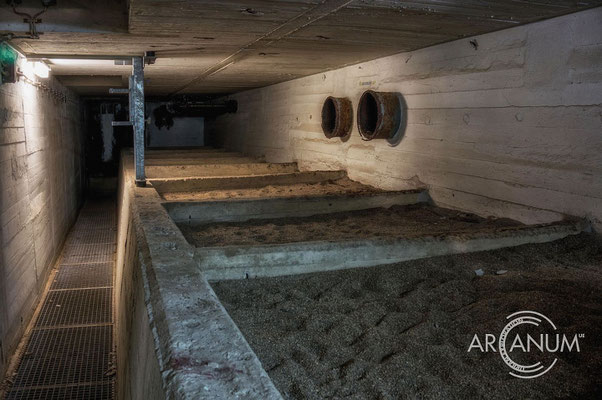

- Sand filter (extending over all 4 floors)
Visited: February 2, 2014
Location: Hohenwestedt, Germany
Status: Active / New Owner
